YT600J-2A

product description

YT600J-2A belongs to the industrial speed-regulating peristaltic pump, with stainless steel housing, DC motor drive, more powerful power. Can be cascaded with double pump heads, suitable for large flow transmission in industrial sites. After the upgrade, a new speed display is added, which can visually display the current working status.

Two drive modes

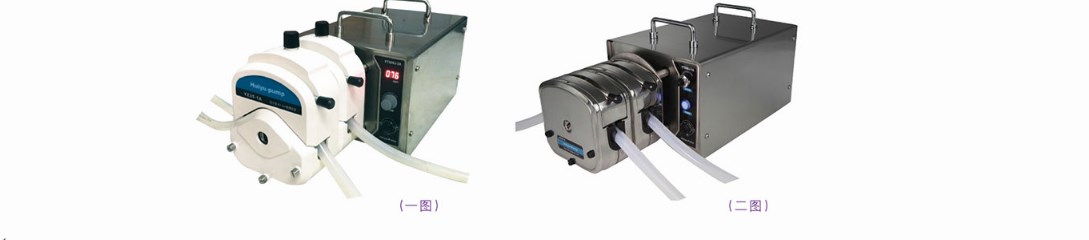

Model: YT600J-2A, with speed display (Figure 1) Model: YT600J-1A, without speed display (Figure 2)

Features

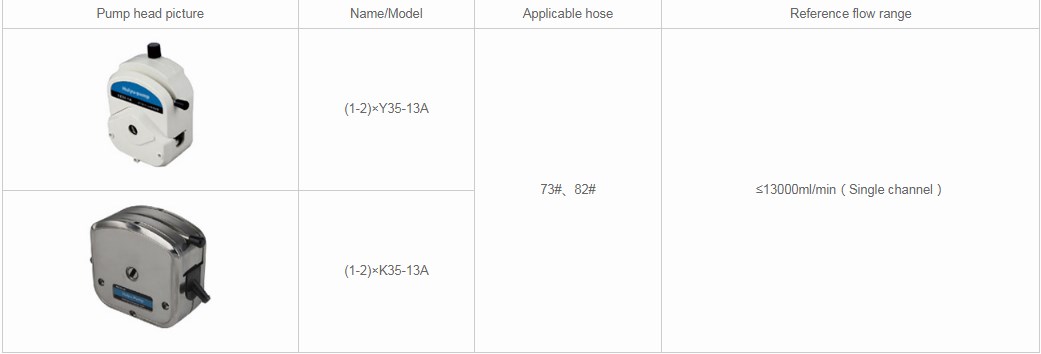

◇ A variety of pump heads can be adapted: YZ35, KZ35

◇ Suitable for industrial production, large flow conveying

◇ It is mostly used in the food and pharmaceutical packaging machinery industry, with a stainless steel pump head integrated with the body

◇ When equipped with a single-channel pump head, it can cooperate with FK-1C sub-assembly controller, cycle control, timing start and stop function

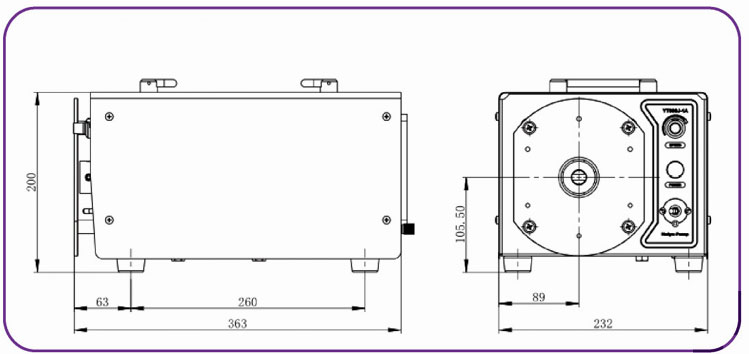

Dimensions

Technical parameter

♢      Speed: 60-600 rpm, reversible

♢      Speed control: multiturn potentiometer

♢      External control: Start/stop control,  speed control (4-20mA、1-10V)

♢      Memory function: Repower the pump, user can choose whether to   continue in accordance with the state before                the   power-down

♢      Prime button for fast filling and emptying

♢      Power supply: AC 220 ±20%/400W

♢      Operating condition: Temperature 0 to 40℃, relative humidity<80%

♢      IP rating: IP31

♢      Drive weight: 20kg
