WT600L-1A

Features

◇ Automatic correction function

◇ Membrane buttons can control start and stop, direction and speed

◇ Can quickly fill and empty function

◇ It can communicate with the host computer

◇ External control signal can control start and stop, direction and speed

◇ Power-down memory function

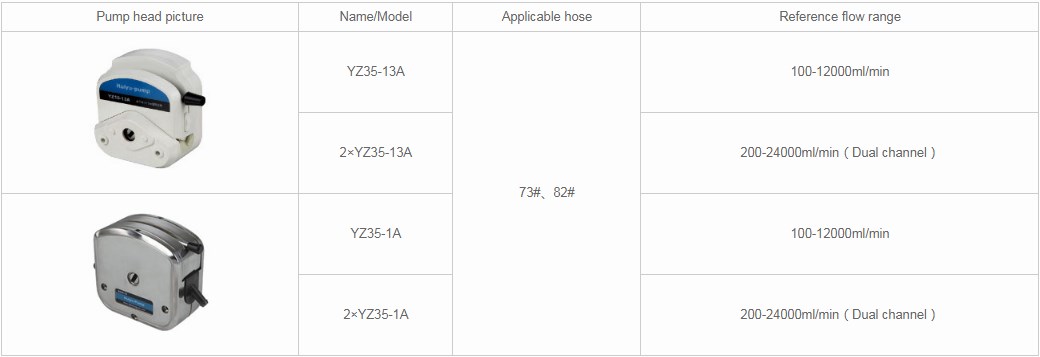

◇ Different pump heads can be replaced

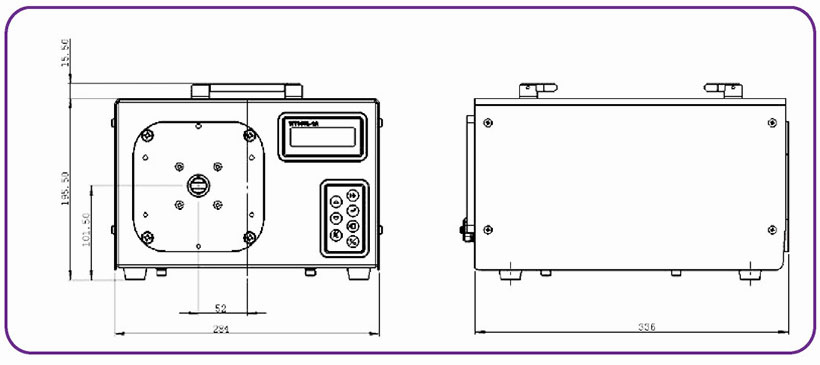

Dimensions

Technical indicators

◇  Speed range: 10-600rpm, resolution lrpm; direction reversible

◇ Adjustment method: membrane button adjustment

◇ Display interface: flow mode, speed mode

◇ Display mode: graphic dot matrix liquid crystal display

◇ Communication method: RS485 half duplex

◇ External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)

◇ Applicable power supply: 176-264V AC, 50/60Hz

◇ Maximum power: 320W

◇ Working environment: ambient temperature 0-40 ° C, relative humidity <100%

◇ Dimensions: 352*291.4*195.5 (length × width × height) mm

◇ Weight: 10kg

◇ Protection level: IP31
