LST01-1B laboratory syringe pump

Product description

LST01-1B injection pump is a perfusion/extraction type, single-channel injection pump, touch screen control, integrated structure.

Applicable occasions: biological laboratory field, long-term animal drug microinjection experiment, electrostatic spinning, chemical reaction injection experiment, etc.

Technical index

Flow range: 0.001μl-86.699ml/min

Working mode: perfusion, extraction.

Number of channels: 1

Travel range: ≤140mm

Travel resolution: 0.156μm

Linear speed range: 5μm/min-130mm/min (flow rate = linear speed × cross-sectional area inside the syringe)

Linear speed adjustment resolution: 5μm/min

Stroke control accuracy: error≤±0.5% (when stroke≥30% of maximum stroke)

Rated linear thrust: >180N

Syringe protection function: By adjusting the position of the limit block, the syringe can be prevented from being damaged

Power-down memory function: 1. EEPROM saves the setting parameters, after re-power on, no need to reset. 2. The power is cut off when running in the flow mode, after the power is restored, it can continue to run or stop according to the set parameters

Traffic jam protection function: when the propulsion mechanism of the syringe pump is blocked during work, the syringe pump will stop the propulsion mechanism and sound the alarm

Communication interface: RS485

Power supply: AC 90V-260V/20W

Working environment temperature: 0℃-40℃

Relative humidity of working environment: <80%

Dimensions: 280×210×150 (length*width*height mm)

Weight: 3.8kg

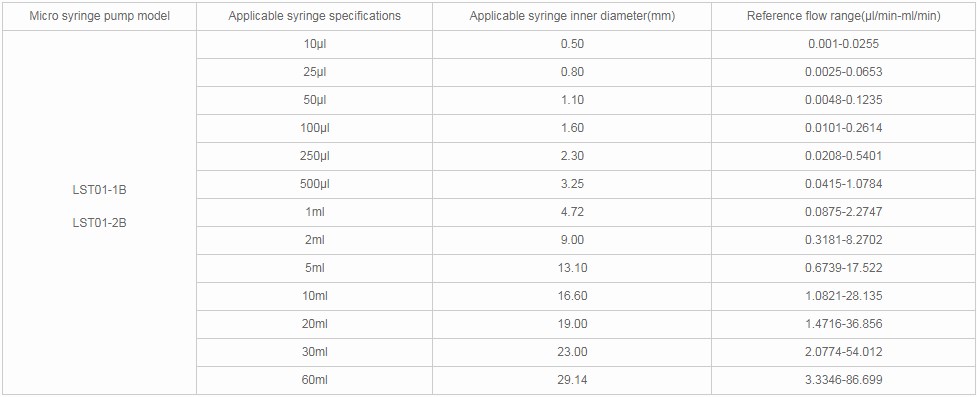

Technical Data Sheet
