BT300L-1A

Features

◇ Membrane buttons can control start and stop, direction and speed

◇ Can quickly fill and empty function

◇ It can communicate with the host computer

◇ External control signal can control start and stop, direction and speed

◇ Power-down memory function; leakage protection function; overheating protection function

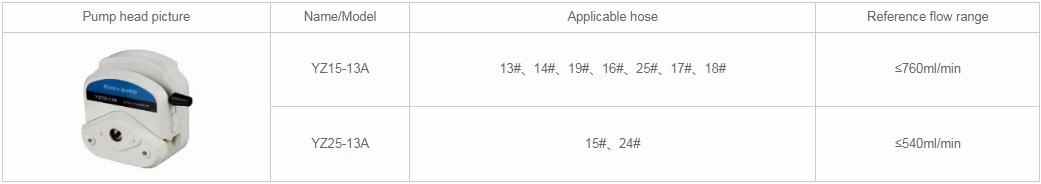

◇ Different pump heads can be replaced

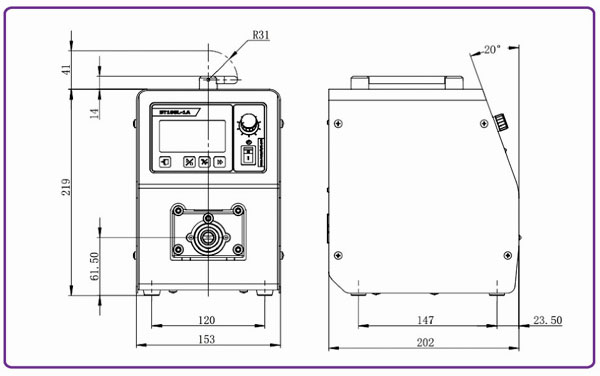

Dimensions

Technical parameter

◇ Speed range: 1-300rpm, resolution 0.1 rpm

◇ External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)

◇ Display mode: graphic dot matrix liquid crystal display

◇ Communication method: RS485 half duplex

◇ Applicable power supply: AC 220V ±20% 50~60Hz

◇ Power consumption: ≤55W

◇ Working environment: ambient temperature 0℃~40℃ relative humidity＜80%

◇ Dimensions: 202×153×260 (length×width×height)mm

◇ Drive weight: 5.5kg

◇ Degree of protection: IP31
